PA768e UHF 6.3-inch 4G Rugged Touch Computer │ Unitech

Unitech introduces the PA768e UHF, a 4G rugged touch computer designed to elevate operational efficiency with eSIM, Wi-Fi 6E technology support, and robust outdoor durability for field service, transportation, and logistics applications.

Features

Powered by Android 14 OS with GMS Certified

Seamless and Connectivity via Wireless Communication

Reliable at its best

Support Gen2X (Coming Soon)

Flexible RFID Integration

User-Friendly Functionality

SmartPA: Better Audio Output

Optical Character Recognition (OCR)

Streamline Your RFID Operations with TagAccess and Unitech RFID SDK

Effortlessly Process Payments with Softpay

4G eSIM & Wi-Fi 6E｜5100mAh hot-swappable battery｜ Built-in RFID (Impinj E310) up to 1.2M

Operation System

Display

Camera/Photos/Video

Keypad

Indicator

Symbologies

RFID

Communication

I/O Interfaces

Enclosure

Durability

Environmental

Power Source

Software

Regulatory Approvals

What comes in the box

Accessories

Warranty

Copied to clipboard

Android 14
2D
NFC
UHF RFID
6.3
4G LTE
Wi-Fi 6E
16MP
IP68
1.8 m
Retail
Logistics
Warehousing
Field Service
Manufacturing

• Android 14 OS with GMS certified
• 4G LTE with eSIM enterprise handheld computer
• Support Wi-Fi 6E: 2.4 and 5GHz frequency as well as the 6GHz band
• Support eSIM technology: Effortless connectivity without physical SIM cards
• Powered by Impinj E310, Gen2X support (coming soon)
• Superior barcode engine : 1D/ 2D/ DPM (7mil) / DOT code/ barcodes on screens/ OCR
• Multi-Scan function: Available to read 10 barcodes at one time
• 1.5M drop-resistant housing (1.8M with bumper)
• IP65 & IP68 heavy-duty protection against water and dust
• True Hot-swap UL certified battery design without downtime
• Support MDM Software Solutions and utilities such as SOTI, VMWare, 42Gears, and MoboLink (Comining Soon)

• 6.3 inch (20:9) Android 14 rugged mobile computer with Split Screen function
• Advanced 64-bit Octa Cores CPU up to 2.4 GHz
• Google Certification: Google Mobile Service（GMS）

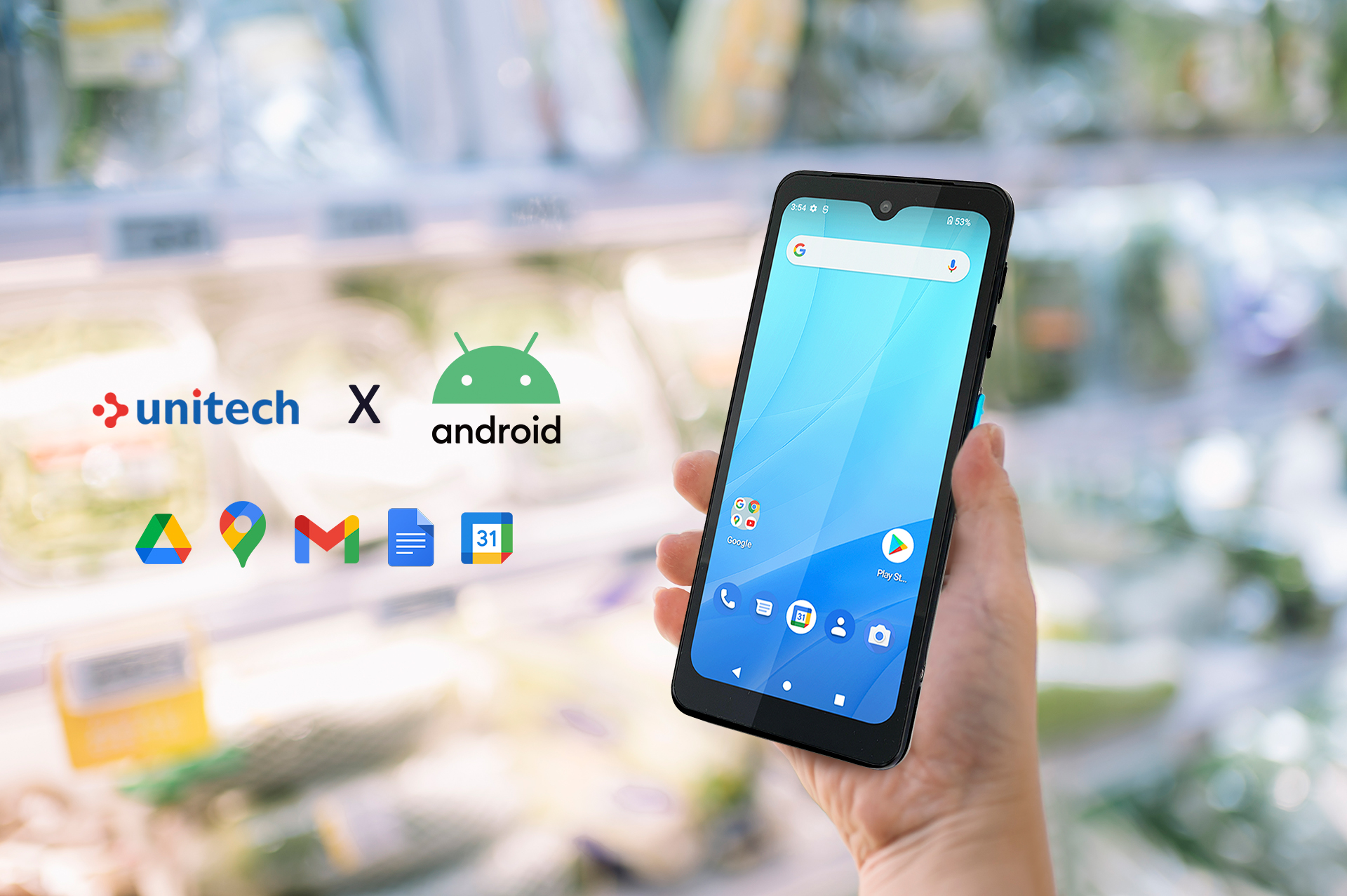

Android 14 Operation System	GMS Certification	Octa-Core CPU	6 GB RAM 64 GB Flash
Note: Learn more about Android Security bulletin information

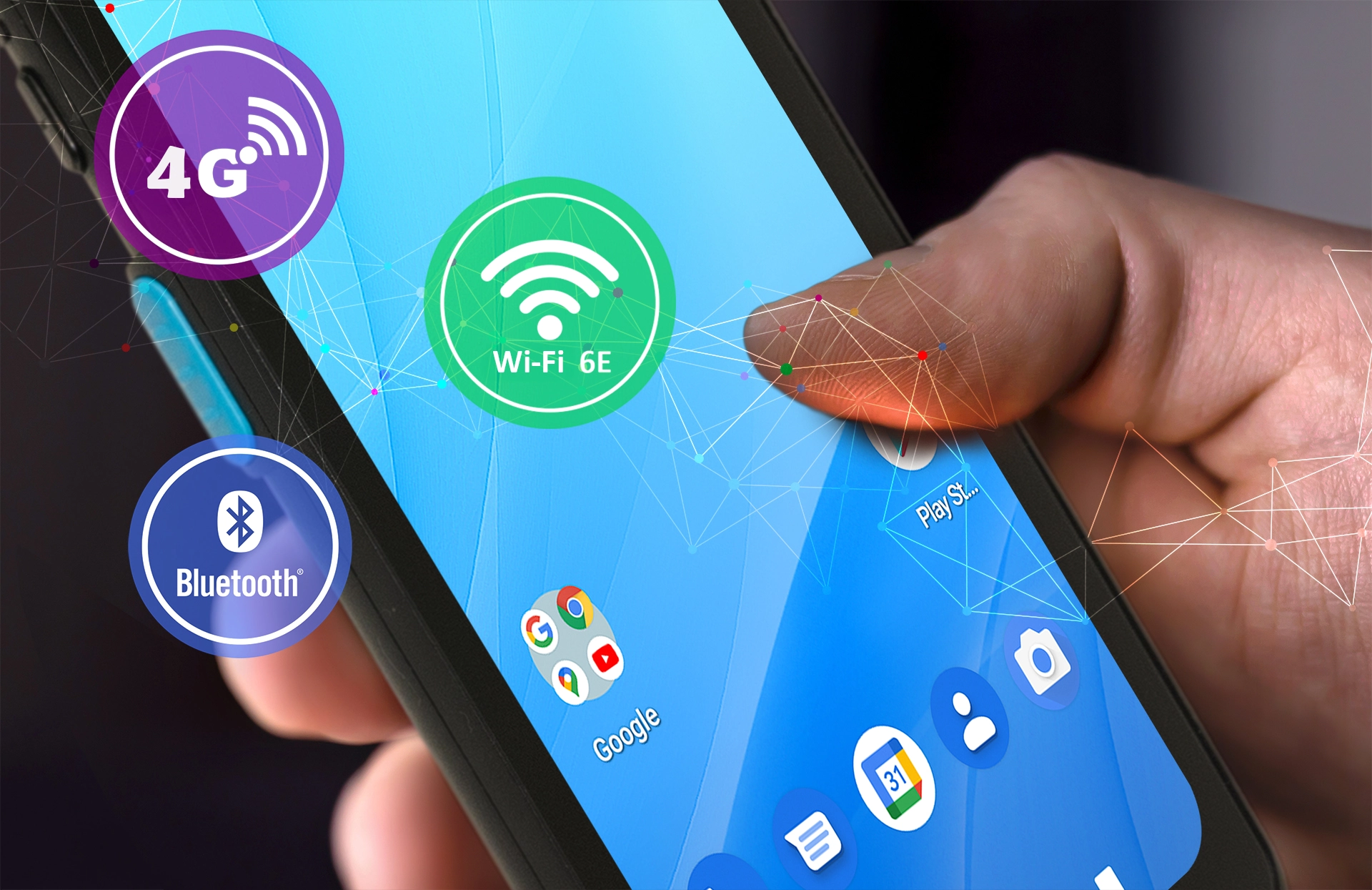

Featuring Wi-Fi 6E technology, the PA768e UHF RFID rugged mobile computer delivers incredible transmission speeds and lower latency, providing users with reliable, high-speed connections to synchronize with systems and handle tasks more efficiently. It empowers users to embrace a new era of speedy connectivity for businesses.

4G
Communications

Wi-Fi 6E
Wireless

Bluetooth 5.1

The PA768ee UHF is GMS certified, helping users tackle even the toughest workdays with ease. With IP65 and IP68 enterprise-grade protection and the ability to withstand 1.8-meter drops (with bumper), the PA768e UHF is the perfect tool for maximizing data collection, management, and traceability across transportation and logistics, field service, manufacturing, and more!

IP65 & IP68
Certification

1.5m
Drop Protection

1.8m
Drop with Bumper

Impinj Gen2X is an advanced RAIN RFID solutions toolbox designed to elevate performance and reduce total solution costs. Key advantages include significantly faster inventory counts and improved read accuracy and range—particularly for small, embedded, or hard-to-read tags. These improvements help reduce labor costs and enable new use cases such as food tagging. Gen2X also introduces enhanced security features, including protection against tag and item counterfeiting and privacy safeguards at the point of sale.

The PA768e UHF supports Impinj Gen2X, delivering enhanced RFID performance that improves the user experience and boosts operational efficiency across various applications.

The PA768e UHF allows users to add value to their device with the standard gun grip, the built-in short-range UHF function or long-range UHF gun grip (RG768). Simply attach it to enable convenient standard barcode scanning and RFID scanning, with RFID reading distances of up to 1.2 meters or 15 meters, supporting inventory tracking and asset management solutions.

• True Hot-swap battery design without downtime.

• Ergonomic handle design for long time use with a durable trigger key.

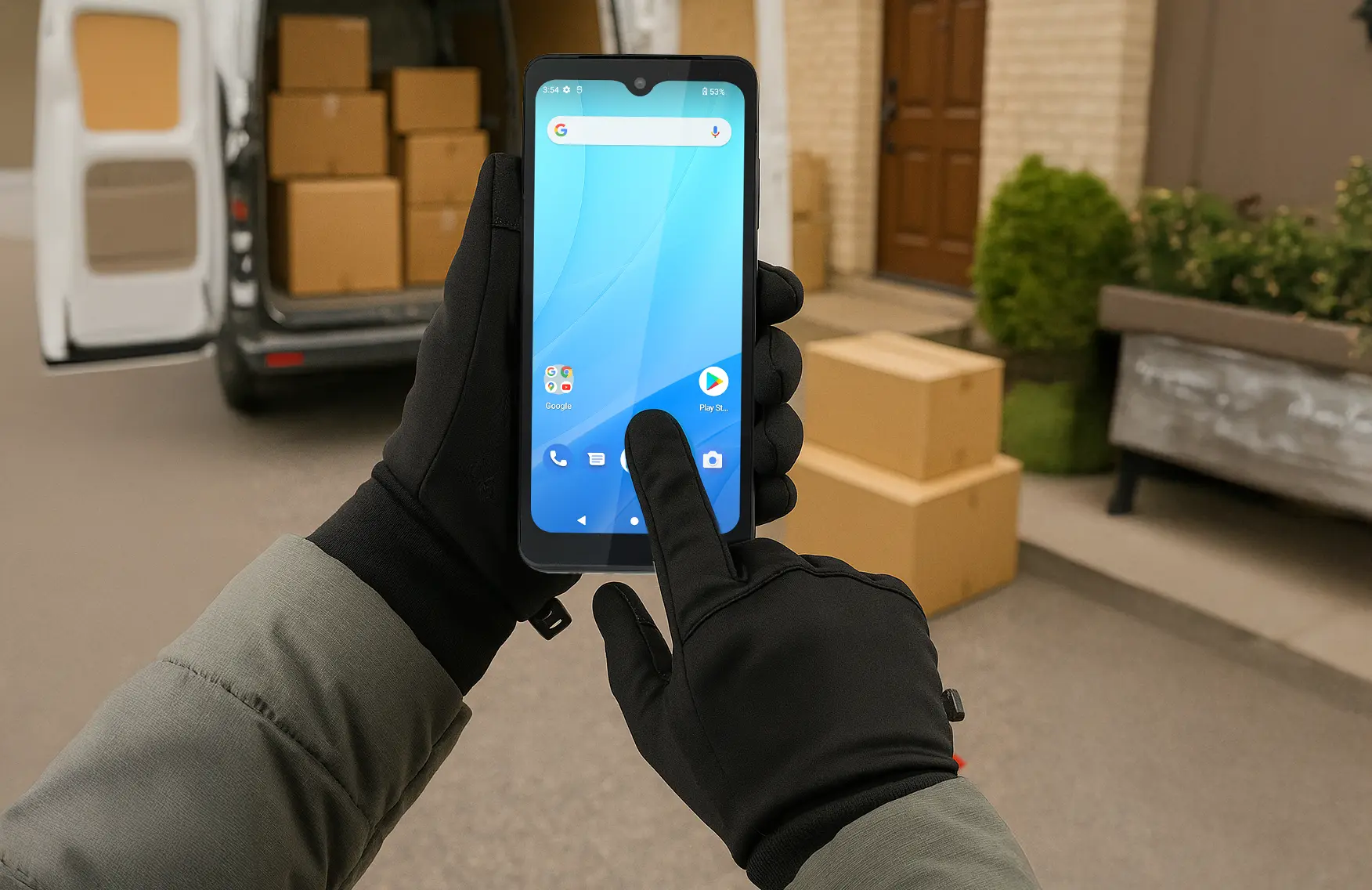

• Workers can run more smooth operations while wearing gloves (thickness ≤ 2mm) or wet-fingers.

• Various Accessories for customer needs.

• Support MDM Software Solutions and utilities such as SOTI, VMWare, 42Gears, and MoboLink. (Coming Soon)

SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.

Power Amplifier
Better Audio Output

Built-in Algorithm
Lessen Circuit / Temperature Damage

• Easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips.
• Minimize the typing mistakes when entering the numbers.
• Streamline your tedious typing process.

Airline

Manufacturing

Logistics

✔ The Airline Ground Services｜Read ID numbers from passports

✔ Manufacturing｜Read vehicle registration numbers and electronic chips

✔ Logistics & Retail｜Read lot numbers printed on the package

Powerful RFID application to take your mobile agility and productivity to the next level.

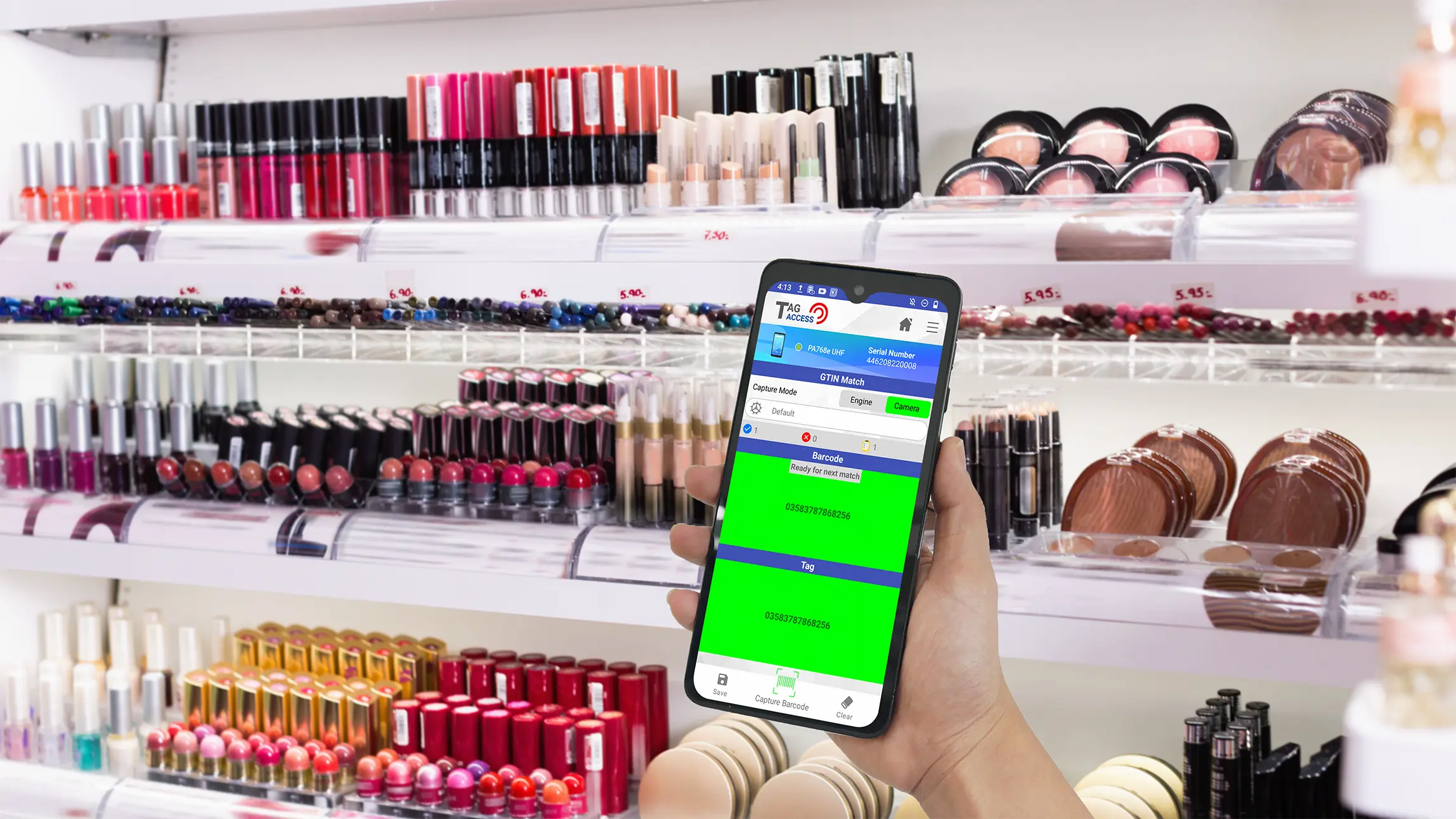

TagAccess

Easy pairing via gun grip
TagAccess accepts pairing manually via attached gun grip. Just select APP to connect automatically without any settings.
Versatile functions of RFID Command
Offer general commands such as Inventory, Read & Write, Find Tag, Lock Tag, and Kill Tag, which allow users to perform various operations on RFID tags.These functions can enable users to manage RFID operations effectively and efficiently.

Data Formatting and Read Tag as Keystroke increase flexibility and productivity
Users can edit the read data by adding preﬁx, suﬃx, switching between uppercase and lowercase, or even replacing by Regular Expression. It's a function to categorize and manage your data. Besides, TagAccess can automatically input the data while scanning, improving productivity and eﬃcieny to another level.

For more information about TagAccess

→ http://www.ute.com/en/products/detail/TagAccess

Unitech RFID SDK

API support for multiple programming languages

The SDK offers APIs for various programming languages, such as Java for Android, Swift and Object-C for iOS, and C# for Windows. This feature enables developers to write codes effortlessly in their preferred language.

Sample Apps and source code

Provide sample apps and source code that can help developers understand how the functions can be integrated with their customized app. This feature can save developers time and resources by providing easy-to-understand examples.

Total Control over Unitech RFID Reader

Unitech RFID SDK gives developers complete control over the Unitech RFID reader. Developers can use the SDK to read the reader information, connect and disconnect readers, and operate RFID commands such as inventory, read and write, lock, and kill tags.

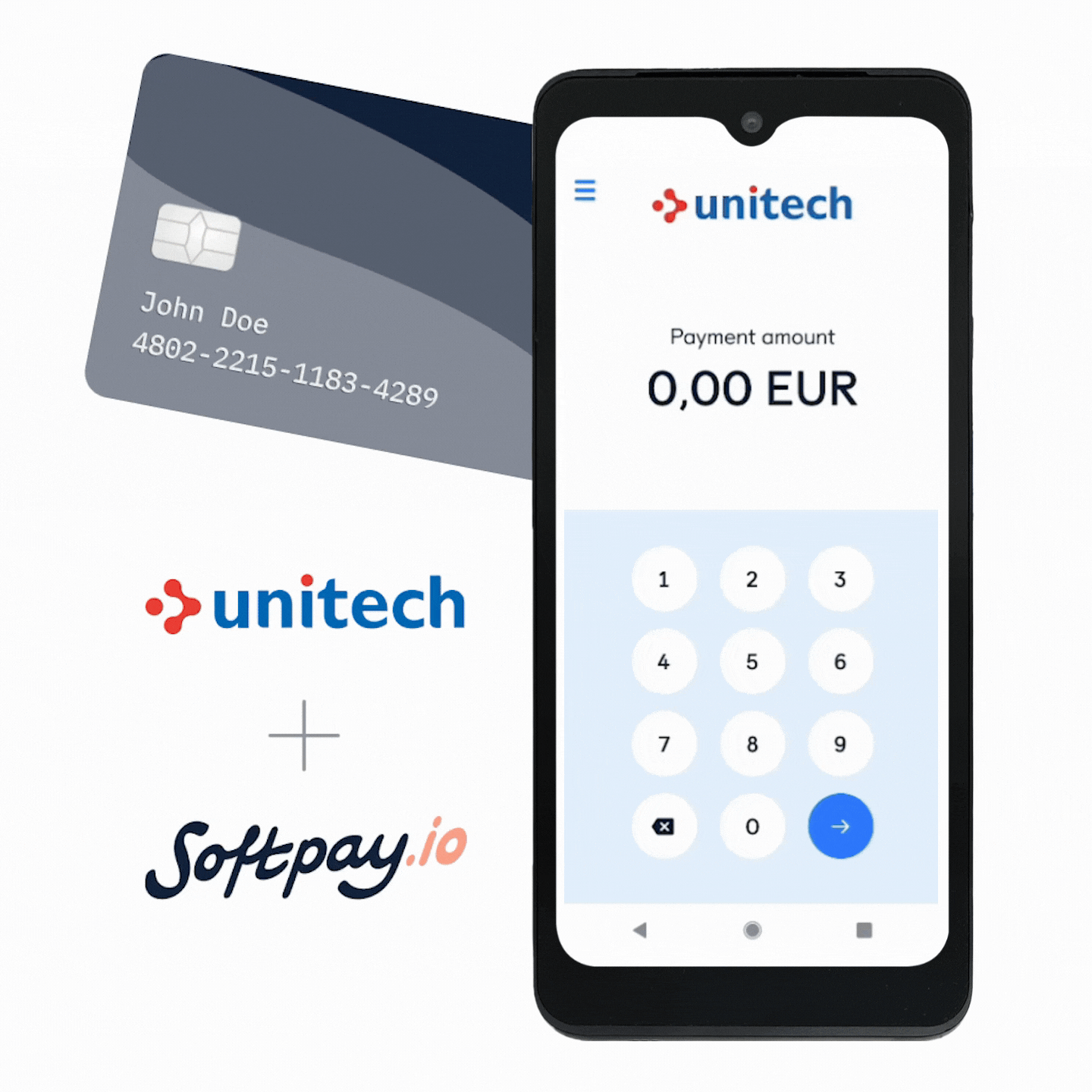

The Unitech PA768e UHF offers support for the Softpay softPOS application, providing a unique mobile point-of-sale solution. This empowers store staff to assist customers on the shop floor and process payments anywhere within the store, eliminating the need for traditional cashier counters. By simply downloading the Softpay solution onto your existing PA768e UHF device, it transforms into a versatile contactless payment terminal. Over time, this innovation allows users to reduce the number of conventional checkout counters in their stores, resulting in a more streamlined and seamless customer experience.

* Learn more about Softpay: https://softpay.io/

MoboLink Android Enterprise ready EMM for monitoring device health and managing apps, configs and files. Learn More	StageGO Barcode-based device staging utility offering hundreds of script commands for you to work with. Learn More	OEMConfig If you are using a third party EMM, OEMConfig will allow those EMM solutions to configure unitech specific settings on the device. Learn More
Battery info Monitor advanced Battery health and manage the battery replacement cycle. Use with MoboLink to get real-time attery health alerts delivered to your phone.	Enterprise Launcher Secure your devices by kiosking them with Enterprise Launcher. Block access to the Android system and only allow limited number of apps to be run. Learn More	Software Update Check and install software updates online. To let a device always stay up-to-date, setup the device to automatically check and install for updates on boot up.
System Update Center Check and install firmware updates via FOTA. You can update the firmware via online FOTA server, or by using a OTA ZIP file placed in the internal storage.	Unitech Scanner Utility An Android application which helps users connect, configure and use a supported Unitech Bluetooth scanner. Learn More	USS Configure all scanner settings with friendly user interface and enable the service to make scanning data as keypad input.
USS Camera Capture barcode data using the device camera and send the data to your applications as keyboard inputs.	KeyRemap Reprogram physical buttons to act as another key or to launch an app. Learn More	WLAN Advanced Configure advanced WLAN settings such as power saving mode and roaming parameters.
NTP Server Settings Customize the NTP server setting to keep your device date and time synchronized.	UNote A simple text viewer and editor for use in your work flows.	Startup Auto-run apps when device boots up.
TagAccess For versatile functions of RFID command via integrating with Unitech RFID Readers. Learn More	Logger An easy and fast way to get logs from a device. Learn More	Enterprise Keyboard Enterprise Keyboard gives various methods for user to input data to enhance efficiency and productivity. Learn More
Mobile SDK Develop apps that work with uniech Android based devices. Apps can configure unitech-specific settings and get advanced access to manage apps, file system or system info, etc.	Scanner SDK Develop apps that work with unitech scanners when customization of scanner settings and data processing workflow are required.	RFID SDK Develop apps that work with unitech RFID mobile and fixed readers if customization of the inventory collection workflow or tag data processing are required.

OS Android 14, upgradeable to Android 16
GMS certified GMS certified
CPU Qualcomm Snapdragon™ 6225 Processor, 8 Cores, up to 2.4GHz
Memory 6 GB RAM / 64GB Flash, UFS6 GB RAM / 128GB Flash, UFS (Optional)
Languages support Multiple languages

Screen Size 6.3” Color LCD 2340 X 1080 (FHD+) High Resolution Display
Touchpanel Gorilla® Glass with Multi-Touch Capacitive Touch Panel, support stylus, glove, wet-finger Compatibility
High sunlight visibility- LCD backlight up to 500nits

Camera 5 MP Front camera
16 MP Rear Camera with LED flash and auto-focus function

Keypad Programmable key, Volume up/down key, Left/right scan key, Power key

Type LED, Vibrator

1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar
2D Barcodes Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
Postal Barcodes Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet

UHF Short range integrated UHF RFID: 1.2M range
Support long range UHF RFID gun grip (RG768): 15M range
HF Support HF/NFC, Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092)

Bluetooth® Bluetooth® 5.1
WLAN 2.4GHz & 5GHz & 6GHz
IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/ax, support Wi-Fi 6E
Security WPA3, WPA2, WPA & WEP
WWAN 4G LTE(FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 14, 17, 20, 28
(TDD) – Bands 38, 39, 40, 41
3G UMTS/HSPA+ – Bands 1, 2, 5, 8
2G GSM/GPRS/EDGE (850/900/1800/1900 MHz)
GPS GPS/ GLONASS/ Gallileo/ Beidou
Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor

USB USB 3.1 type C, support fast charging
OTG Yes, over USB Type-C
SIM Slot Dual SIM: Nano SIM Slot x 1, eSIM x 1
Expansion Slot Micro SD x 1, up to 1TB
Audio Speaker support 95 dB at 10cm
Dual-Microphone support noise cancellation

Dimension 167 x 75.5 x 17 mm
Weight 270g (w/o bumper & hand strap)

Drop Specification 1.5 m, 1.8 m w/ optional bumper
Sealing IP65 & IP68
Vibration and Shock test Tumble 600 times (1.6 ft./0.5 m)

Operating temperature -20°C to 55°C (-4°F to 131°F)
Storage temperature -40°C to 70°C (-40°F to 158°F), w/ battery
Charging Temperature 0°C to 45°C (32°F to 113°F)
Relative Humidity 5% ~ 95% (Non-Condensing)

Main battery Hot Swappable 5100mAh Li-Polymer battery /
battery with cover in one piece
Backup Battery capacity 7700mAh / battery with cover in one piece (optional)

Software SOTI, VMWare, 42Gears, and MoboLink

Types CE, FCC, RoHS 2.0

The standard package contents ■ PA768e UHF Terminal
■ Battery
■ USB type C cable

Items ■ USB 3.0 Type-C Cable(Support Fast Charge) (PN#1550-905908G)
■ Fast Charge Adaptor via USB Type-C Cable (PN#1010-900073G US Plug/ #1010-900074G EU Plug)
■ Hand Strap (PN# 5400-900052G)
■ 9H Glass Screen Protector (PN#5400-900053G 10pcs with Packing)
■ Stylus (5.5mm PN#386534G)
■ Coiled Strap (PN# 383642G)
■ Bumper (PN#5400-900059G, 1 Set with Package)
■ Single Slot Charging Cradle*(PN# 5000-900105G, PSU Only)
■ Single Slot USB Cradle*(PN# 55000-900106G, PSU Only)
■ Single Slot Ethernet Cradle*(PN# 5000-900107G, PSU Only)
■ Power Supply in the 1-slot Cradle (PN#1010-900043G)
■ 4-Terminal+ 4-battery Charging Cradle (PN#5000-900109G , PSU Only)
■ 5-Slot Terminal Charging Cradle (PN#5000-900110G, PSU Only)
■ 5-Slot Terminal Ethernet Cradle (PN#5000-900111G, PSU Only)
■ 4-Slot Battery Charger (PN#5100-900034G, PSU Only)
■ Power Supply in the Multi-slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord(US) (PN#1010-601551G)
■ 3-Pin Power Cord(EU) (PN#1550-602333G)
■ 3-Pin Power Cord (UK) (PN#1550-602689G)
■ Power Adapter 5V/3A (EU,UK,US,AU) (PN#1010-085001G)
■ Standard Gun Grip (PN#5500-900102G)
■ RG768 UHF RFID Gun Grip (PN# 5500-900103G (US) & PA768 with bumper / PN#5500-900104G (EU) & PA768 with bumper)
■ Standard Battery 5100mAh (PN#1400-900069G)
■ Extend Battery 7700mAh (PN#1400-900072G)
■ Vehicle Cradle (PN# 5000-768001G)

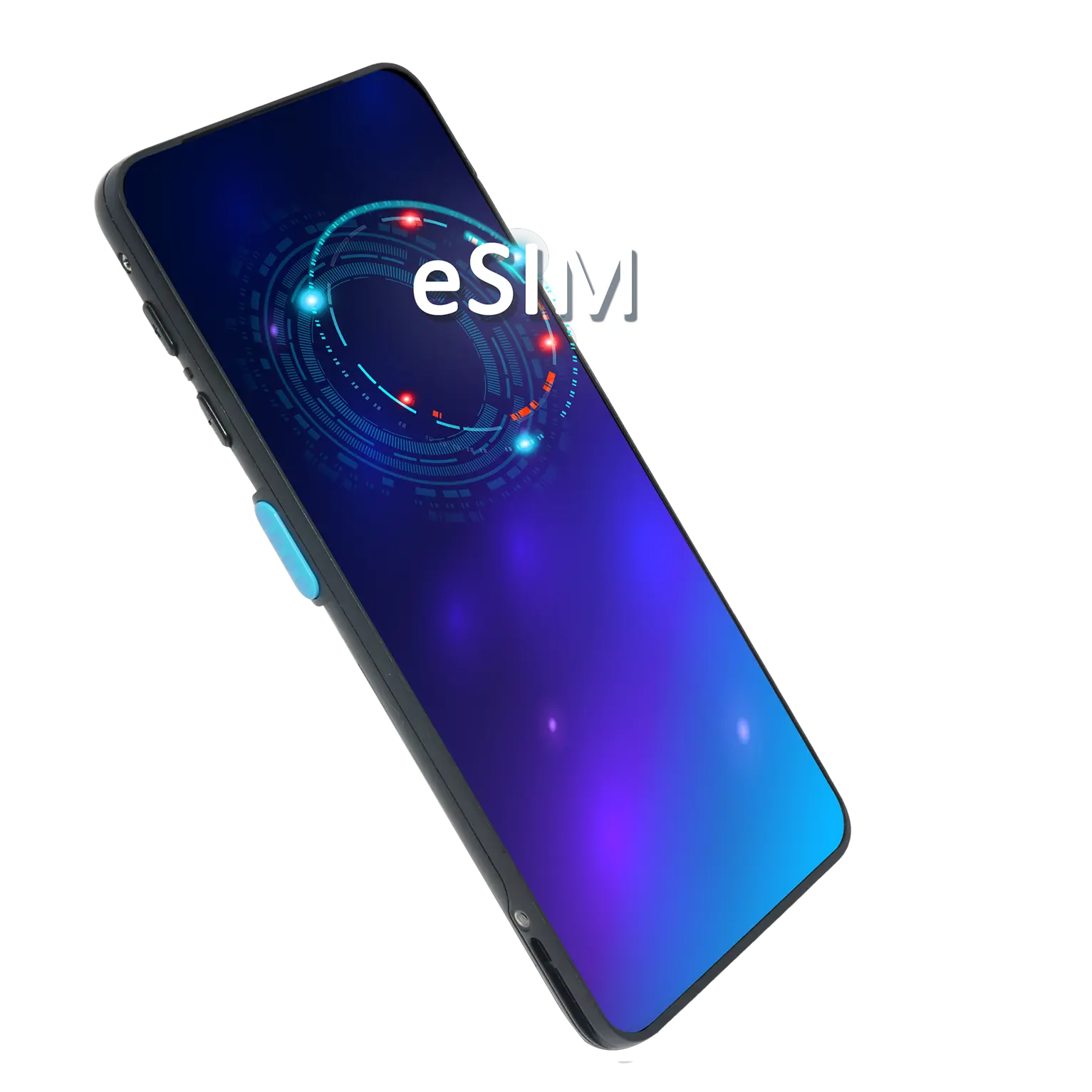

Advance Workflow with eSIM Technology

The PA768e UHF's eSIM technology revolutionizes connectivity by removing the need for physical SIM cards, ensuring greater convenience across various industries. Embedded securely within the device, the eSIM eliminates the risk of loss or damage while enhancing security by preventing unauthorized removal. Network switching is effortless—users can simply connect to Wi-Fi, scan a QR code, or enter an activation code. Optimized for efficiency, the PA768e delivers seamless, reliable connectivity, perfectly suited to the dynamic demands of logistics, warehousing, and beyond.

eSIM Technology

Support

Hassle-Free Setup and Activation

Flexible Access Options

Hardware Warranty 12 months
Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
